Our Projects

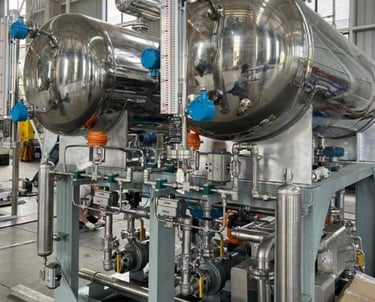

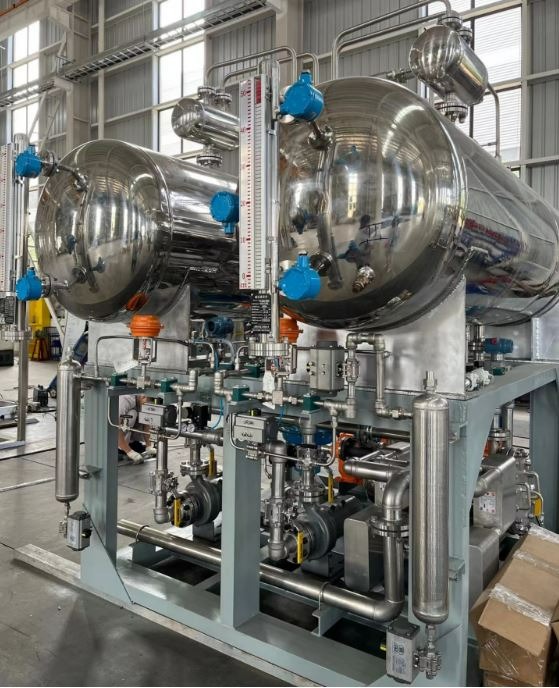

250Nm3/h Alkaline Hydrogen Generator for PV plant

H2 Flow: 60Nm3/h

H2 Purity: 99.999%

Operating pressure: 1.6Mpa

Operating Current: 8000A

Operating Voltage: 148-156V

This project using our skid-mounted model and 3 dry tower design for no regneration gas consumption and energy saving. One part of the produced H2 will be compressed and sold, other part will be used for hydrogen Fuel cell.

60Nm3/h Alkaline Hydrogen Generator for Float Glass Industry

H2 Flow: 60Nm3/h

H2 Purity: 99.999%

Operating pressure: 1.6Mpa

Operating Current: 3000A

Operating Voltage: 96-100V

This project is using our skid-mounted model and 2 dry tower design for hydrogen purification system. It contains additional set of lye pump, water pump standby.

Except the hydrogen production system, we also provide auxiliary equipment for this project including water purifier, water chillier, hydrogen storage tank.

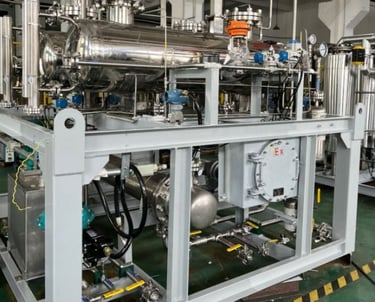

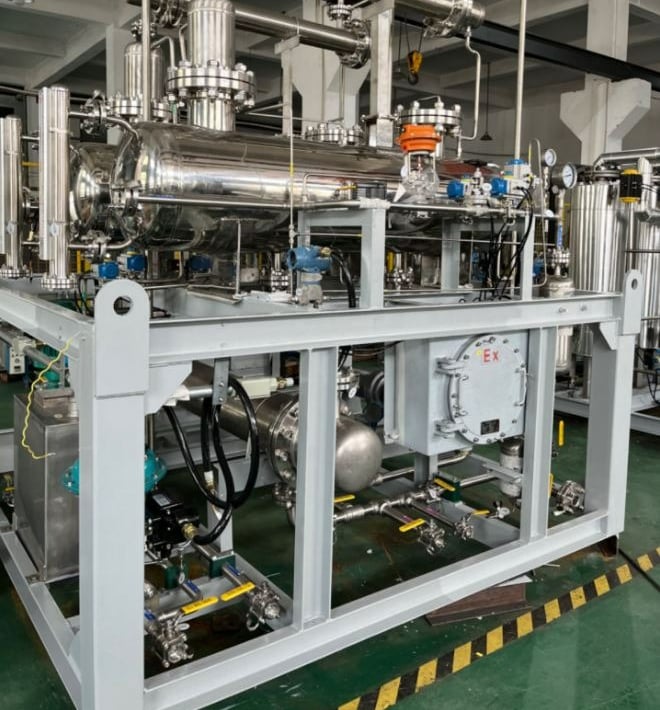

50Nm3/h Alkaline hydrogen generator for Metal processing Industry

H2 Flow: 50Nm3/h

H2 Purity: 99.999%

Operating pressure: 1.6Mpa

Operating Current: 3000A

Operating Voltage: 78-82V

This project using our skid-mounted model and 3 dry tower design to make sure no regeneration gas consumption. Except the hydrogen production system, we also provide auxiliary equipment for this project including water purifier, water chillier, hydrogen buffer tank and hydrogen compressor.
